What It Means When Your AC Circuit Breaker Keeps Tripping

Understanding ac circuit breaker keeps tripping what it means starts with one simple fact: your breaker is not the problem — it is the messenger. When your AC trips the breaker, the circuit has detected more electrical current than it can safely carry and shut itself off to prevent overheating, damaged wiring, or a fire.

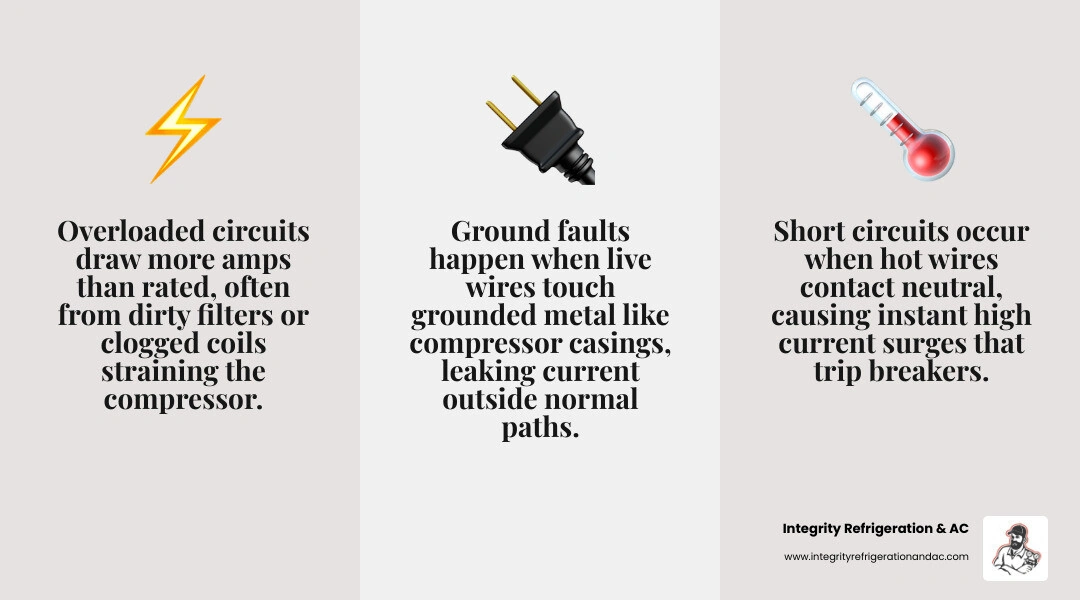

Here are the most common reasons it happens:

• Overloaded circuit - Your AC is drawing more amps than the breaker is rated for, often due to dirty filters, clogged coils, or a struggling compressor
• Short circuit - A hot wire is making direct contact with a neutral wire, creating an instant surge that forces the breaker to snap off
• Ground fault - A live wire is touching a ground wire or a grounded metal surface, such as the compressor casing, leaking electricity outside its intended path
• Failing components - A bad capacitor, worn contactor, or aging compressor can spike amperage dramatically during startup
• Faulty breaker - An old or weakened breaker may trip even when the actual electrical load is within a safe range

If your breaker tripped once and reset without issue, it may have been a temporary overload. If it keeps tripping — especially immediately after reset — stop resetting it and call a licensed HVAC technician right away.

I'm Billy Gregus, owner of Integrity Refrigeration & AC, and with nearly two decades of hands-on HVAC experience across Central Florida, I've diagnosed and resolved hundreds of cases where an ac circuit breaker keeps tripping what it means was the difference between a simple repair and a costly system failure. Let's walk through exactly what's going on inside your system and what you can do about it.

Understanding What It Means When Your AC Circuit Breaker Keeps Tripping

When you are standing in your garage or hallway staring at that flipped switch in the electrical panel, it is easy to feel frustrated. However, that breaker is actually the "hero" of your home's electrical system. Its primary job is overcurrent protection. In our service areas like Winter Haven and Lakeland, FL, where air conditioners run almost constantly, the electrical load is immense.

To understand Why AC Circuit Breaker Keeps Tripping, we have to look at the three main electrical "events" that trigger a safety shutoff:

Every breaker has a specific amperage rating. If your AC is designed to pull 18 amps but suddenly spikes to 30 because of a mechanical struggle, the breaker snaps off to prevent the wires from melting. This is your home’s first line of defense against electrical fires.

Common Mechanical Culprits Behind a Tripping Breaker

Not every trip is a major electrical disaster. Many times, the issue is purely mechanical. When your AC system cannot "breathe" or release heat properly, it has to work overtime. This extra work requires more electricity, which eventually leads to an overload.

The "Pillow Over the Face" Effect: Dirty Air Filters

We often use the analogy that a dirty air filter is like trying to breathe with a pillow over your face. When the filter is clogged with dust, pet hair, and Florida pollen, the blower motor has to strain significantly harder to pull air through the home. This increased mechanical resistance causes the motor to draw more amperage. If the strain continues, the breaker will trip to protect the motor from burning out.

Clogged Condenser Coils and Frozen Evaporators

The outdoor unit (the condenser) is responsible for releasing the heat gathered from inside your home. In towns like Auburndale and Bartow, grass clippings, dirt, and debris can quickly coat these coils. This layer of grime acts like an insulating blanket, trapping heat inside the unit.

When the heat cannot escape, the internal pressure of the refrigerant rises. To combat this high pressure, the compressor has to work much harder, spiking the electrical draw until—you guessed it—the breaker trips. Similarly, if airflow is restricted enough, your indoor evaporator coils can freeze over, causing the entire system to cycle improperly and overload the circuit.

Why a Failing Compressor and AC Circuit Breaker Keeps Tripping

The compressor is the "heart" of your AC system and the most power-hungry component. As a compressor ages, it can experience "hard starting." This means it requires a massive burst of energy to overcome internal mechanical resistance just to get the motor turning.

In the industry, we measure this as Locked Rotor Amps (LRA). If your compressor is struggling to start, it might pull a surge of electricity that is double or triple its normal operating range. This instant spike is a common reason why the ac circuit breaker keeps tripping what it means is often a sign of a failing compressor.

Electrical Failures: From Bad Capacitors to Grounded Compressors

If your filters are clean and your coils are sparkling, the problem likely lies within the electrical components themselves. Central Florida's heat is brutal on sensitive electronics.

Failed Start Capacitors: The "Short-Term Battery"

Your AC uses a capacitor to provide the high-energy jolt needed to start the motors. Think of it as a small battery that gives the system a "push" to get moving. In the extreme heat of Polk County, these capacitors can bulge, leak, or simply lose their ability to hold a charge.

When a capacitor fails, the compressor or fan motor will hum and try to start, but without that extra "push," it stays stationary while drawing maximum current. This results in an immediate trip. Replacing a capacitor is a common and relatively simple repair, but it must be done by a professional because capacitors can hold a dangerous electrical charge even when the power is off.

Pests, Lizards, and Loose Wiring

We live in Florida, which means lizards and insects are everywhere. It is surprisingly common for a small lizard to crawl into the outdoor unit's contactor (the switch that turns the unit on). If they get stuck between the contact points, they can cause a short circuit or prevent the system from engaging properly, leading to electrical arcing and breaker trips.

Additionally, the constant vibration of the AC unit over several years can cause wire connections to vibrate loose. A loose wire creates high resistance, which generates heat. This heat can eventually melt the insulation, leading to a direct short circuit.

When to Call a Pro if Your AC Circuit Breaker Keeps Tripping

While we encourage homeowners to check their filters, there are specific signs that mean you should put down the flashlight and call us immediately:

• Immediate Trips: If the breaker trips the very second you flip it back on.
• Burning Smells: An acrid, "electrical" burning odor near the panel or the AC unit.
• Buzzing or Hissing: Strange noises coming from the electrical panel or the compressor.
• Visible Damage: Frayed wires or burn marks on the breaker itself.

Our technicians use specialized tools like a megohmmeter to test the integrity of the motor windings. This allows us to see "inside" the wires to determine if the insulation is failing before it causes a fire.

Identifying a Grounded Compressor or Short Circuit

A "grounded compressor" is one of the most serious failures in the HVAC world. This happens when the electrical windings inside the compressor break down and make contact with the metal casing. This creates a direct path to the ground, causing a massive surge of electricity. This is a critical failure that usually requires a compressor replacement or, depending on the age of the unit, a full system upgrade.

Safe Troubleshooting and Resetting Procedures for Homeowners

If your breaker has tripped, you can safely perform a "hard reset" once. Follow these steps to see if the issue was just a one-time fluke:

1. Turn off the AC at the thermostat: This ensures the system doesn't try to pull a massive load the instant the power returns.
2. Locate your electrical panel: Find the breaker labeled "AC" or "HVAC." It will be a double-pole breaker (twice as wide as the others).
3. The "Off-Then-On" Rule: A tripped breaker usually sits in a middle position. You must flip it all the way to the OFF position first until you hear a "click," then flip it back to ON.
4. Wait 30 Minutes: This is the most important step. Waiting 30 minutes allows the internal pressures in the AC unit to equalize and gives the system time to cool down.
5. Turn the thermostat back to "Cool": Monitor the system. If it trips again within minutes (or immediately), do not reset it a second time.

Frequently Asked Questions about AC Breaker Trips

Is it safe to keep resetting a tripped AC breaker?

No. You should only attempt to reset a tripped breaker once. If it trips again, it is a clear safety warning that something is wrong. Repeatedly resetting a breaker can lead to wire degradation, permanent damage to the compressor, and increases the risk of an electrical fire.

Can a dirty air filter cause the AC breaker to trip?

Absolutely. A clogged filter restricts airflow, which forces the blower motor and the compressor to work much harder. This increased mechanical strain raises the amperage draw. Over time, this overwork leads to an electrical overload that snaps the breaker. We recommend changing your filters every 30 to 90 days, especially during the peak Florida summer.

Why does my AC trip the breaker as soon as it turns on?

If the trip happens instantly, it usually indicates a "dead short" or a grounded compressor. This means electricity is flowing directly to the ground or another wire without any resistance. This is an electrical fault, not a maintenance issue, and requires a professional diagnostic to locate the short.

Conclusion: Stop the Flip and Restore Your Comfort

When your ac circuit breaker keeps tripping what it means is that your system is crying out for help. Whether it’s a simple fix like a dirty coil or a more complex electrical issue like a failing capacitor, ignoring the problem will only lead to more expensive repairs down the road.
