The Step-by-Step Anatomy of a Ductless AC Install

How a Ductless AC Installation Works Step by Step: What Every Homeowner Should Know

How a ductless ac installation works step by step is something more Polk County homeowners are asking about as ductless mini-split systems become the go-to cooling solution for Florida homes without existing ductwork. Here's a quick overview of the full process:

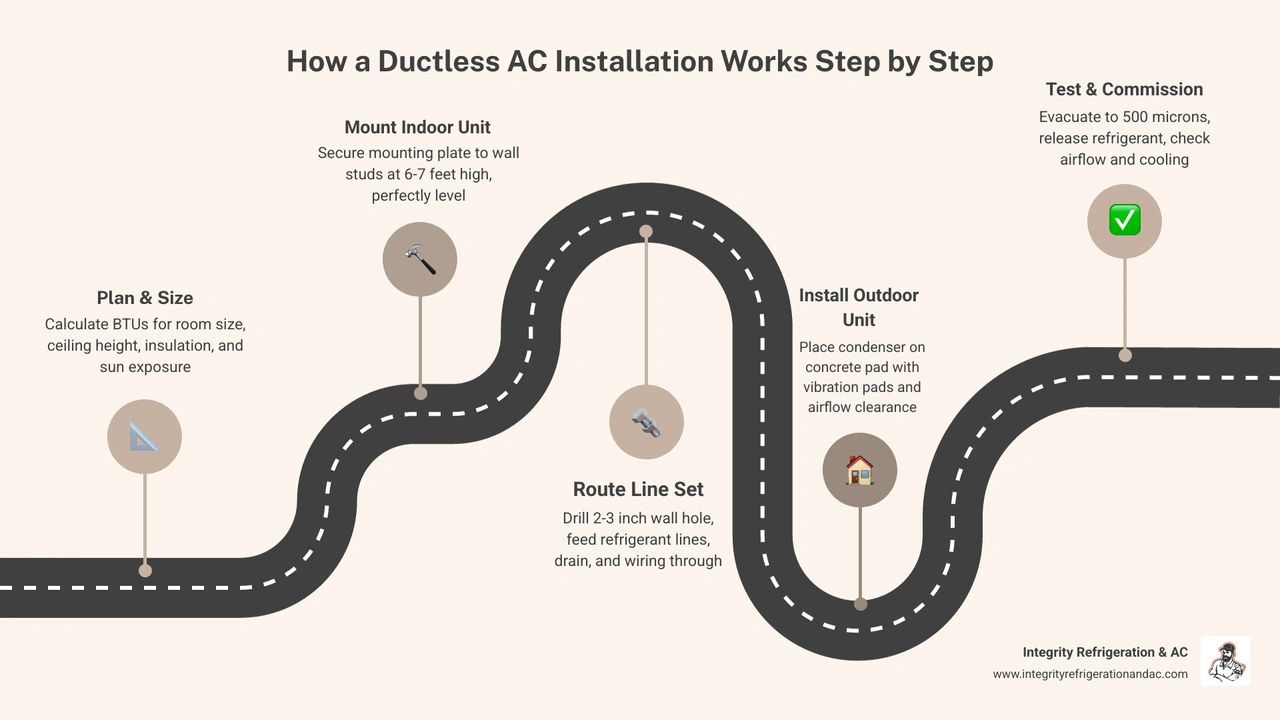

1. Plan and size the system - Calculate BTUs based on room size, ceiling height, insulation, and sun exposure
2. Select locations - Choose wall placement for the indoor unit (at least 6-7 feet high) and a level spot outside for the condenser
3. Mount the indoor bracket - Secure the mounting plate to wall studs and confirm it's perfectly level
4. Drill the wall hole - Bore a 2-3 inch hole angled slightly downward through the exterior wall and insert a wall sleeve
5. Route the line set - Feed the refrigerant lines, drain hose, and communication wiring through the wall
6. Install the outdoor unit - Set the condenser on a concrete pad with vibration pads and proper airflow clearance
7. Connect all components - Attach refrigerant lines with flare nuts, wire the electrical connections, and route the condensate drain
8. Evacuate and leak test - Use a vacuum pump to pull the lines down to 500 microns and hold for 15-20 minutes to confirm no leaks
9. Release the refrigerant - Open the service valves on the pre-charged outdoor unit to allow refrigerant to flow through the system
10. Test and commission - Power on the system, sync the remote, check airflow, and verify cooling performance

A ductless mini-split system connects an outdoor compressor to one or more indoor air handlers through a small opening in your wall — no ductwork required. That makes it one of the least invasive and most energy-efficient ways to cool a home, especially here in Central Florida where the heat is relentless year-round. Unlike traditional central air systems that can lose up to 30% of their cooling energy through leaky ducts, a ductless system delivers conditioned air directly into the room where you need it. The result is precise, zoned comfort and lower energy bills.

I'm Billy Gregus, owner of Integrity Refrigeration & AC, and I've guided countless Polk County homeowners through how a ductless ac installation works step by step — from proper sizing and placement all the way through refrigerant management and final commissioning. In this guide, I'll walk you through every phase of the process so you know exactly what to expect.

Understanding How a Ductless AC Installation Works Step by Step

When we talk about how a ductless ac installation works step by step, we are looking at a process designed for surgical precision. Unlike a central air install that might involve tearing into your drywall to run bulky metal ducts, a ductless setup (often called a mini-split) focuses on creating a high-efficiency link between an indoor air handler and an outdoor condenser.

The "magic" happens through the refrigerant lines. These small copper pipes carry heat out of your home in the summer and can actually bring heat back in during our rare Florida cold snaps using heat pump technology. Because there are no ducts to leak air into your attic or crawlspace, you aren't paying to cool parts of your home that nobody lives in. This is a massive win for energy efficiency.

In fact, The Advantages Of Installing A Ductless Mini Split System go beyond just the electric bill. You get whisper-quiet operation and the ability to set different temperatures for different rooms. When comparing Central Ac Vs Ductless Ac For Florida Homes, the ductless option often wins for home additions, converted garages, or older homes in areas like Bartow or Lake Wales where adding ductwork is physically impossible or prohibitively expensive.

Phase 1: Planning and Sizing for Polk County Homes

Before a single tool leaves the truck, we have to do our homework. If you've ever sat in a room that felt "muggy" even though the AC was running, you've experienced the result of poor sizing.

To determine the right capacity, we use a BTU (British Thermal Unit) calculation. In Central Florida, we don't just look at square footage. We have to consider:

• Ceiling Height: Higher ceilings mean more air volume to cool.
• Sun Exposure: A room with large, south-facing windows in Lakeland needs more "oomph" than a shaded room.
• Insulation Quality: Older homes in Winter Haven might have thinner walls that let heat seep in faster.

Generally, you’re looking at about 9,000 to 12,000 BTUs for every 400–500 square feet, but we refine this based on your specific layout. Getting this right is the most critical part of a Ductless Mini Split Winter Haven Fl project.

How a ductless ac installation works step by step: Selecting the right location

Location is everything. For the indoor unit, we look for a spot on an exterior wall that allows for the shortest possible "run" to the outdoor unit.

• The 7-Foot Rule: We aim to mount the unit at least 7 feet above the floor. This allows the cool air to distribute evenly across the room rather than just chilling your feet.
• Airflow Clearance: The unit needs about 6 inches of open space above it and on the sides so it can "breathe."
• Structural Integrity: We use a stud finder to ensure the mounting plate is anchored into wall studs. These units aren't incredibly heavy (usually 40-50 pounds), but you don't want them held up by just drywall anchors when the fan is spinning at high speeds.

Assessing electrical and drainage needs

Ductless units produce condensation—it’s how they dehumidify your air. That water has to go somewhere. Usually, we rely on a gravity drain, which means the drain hose must always slope downward. If we have to mount a unit on an interior wall, we might need to install a small condensate pump to push that water up and out, but a direct gravity drain is always the most reliable option.

On the electrical side, most systems we install in places like Auburndale or Polk City require a dedicated 240V circuit. This means we run a new line from your main breaker panel to an outdoor disconnect box near the condenser. This ensures your AC has the power it needs without tripping breakers when you turn on the microwave. Our Ductless Ac Services Winter Haven Fl include a full assessment of your current panel to make sure it's up to the task.

Phase 2: Mounting the Indoor and Outdoor Units

Once the plan is set, the physical work begins. We start by securing the mounting plate to the wall. We use a level to make sure it’s perfect; even a slight tilt can cause the condensate pan to overflow, leading to water dripping down your wall.

Next comes the "point of no return": drilling the hole. We use a hole saw to bore a 3-inch diameter hole through the wall. Pro Tip: We always drill at a slight downward angle toward the outside. This prevents rainwater from running back into your home and ensures the condensate drain works perfectly. We then insert a plastic wall sleeve to protect the lines and the wall itself.

How a ductless ac installation works step by step: Connecting the line set

The "line set" is the umbilical cord of the system. It consists of two copper refrigerant lines (a suction line and a liquid line), a communication cable, and the drain hose.

Connecting these copper lines is where technical skill is paramount. We use a flaring tool to create a precise, cone-shaped end on the copper tubing. This flare fits into a brass nut. We then use a torque wrench to tighten it to the manufacturer’s exact specifications. If it’s too loose, it leaks; too tight, and the flare can crack. Precision here is why Ductless Ac Maintenance Winter Haven Fl is so much easier down the road—a leak-free start prevents major headaches later.

Securing the outdoor condenser

While the indoor unit is getting settled, we head outside to install the heart of the system: the condenser.

• The Foundation: We place the unit on a level, heavy-duty plastic or concrete pad.
• Vibration Pads: We install rubber "snow feet" or vibration pads between the unit and the pad. This keeps the unit quiet and prevents it from "walking" during high-speed operation.
• Clearance: The condenser needs at least 12–20 inches of clearance from the wall and any shrubbery to ensure it can exhaust heat efficiently.

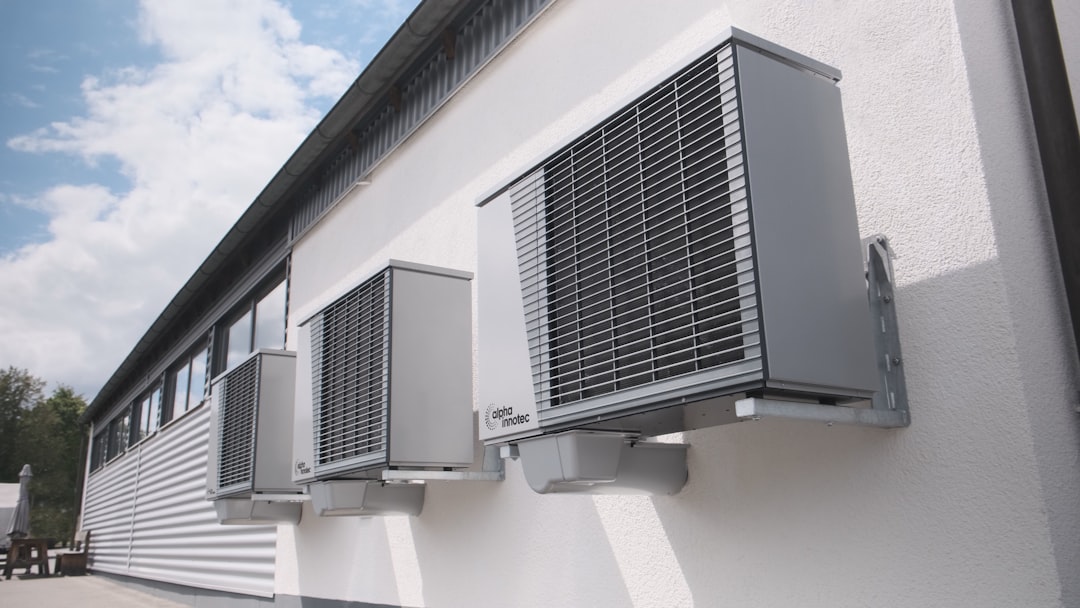

In some cases, especially in tighter spaces in Davenport or Haines City, we might use wall brackets to mount the condenser off the ground. This is great for keeping the unit away from weed whackers and flooding. Working with Local Ductless Ac Installers ensures your outdoor unit is placed according to local codes and best practices for our climate.

Phase 3: Electrical Wiring and Refrigerant Management

Now we connect the two halves. We run a 14 AWG, 4-conductor stranded wire (the communication cable) from the indoor unit through the wall hole to the outdoor unit. This cable allows the indoor thermostat to "talk" to the outdoor compressor.

We also connect the main power from your breaker panel to the outdoor disconnect box. We highly recommend adding a surge protector to this box. Florida is the lightning capital of the world, and the sensitive inverter boards in modern ductless systems don't play well with power surges.

Evacuating the system and leak testing

This is the step that separates the "Climate Commanders" from the amateurs. Before we let any refrigerant into those copper lines, we have to make sure they are bone-dry and air-tight.

1. Nitrogen Pressure Test: We pressurize the lines with dry nitrogen (often up to 300-500 psi) and watch the gauges. If the pressure drops, we have a leak.
2. The Vacuum Pull: Once we know it's tight, we use a vacuum pump to remove all air and moisture. We use a micron gauge to pull the system down to at least 500 microns.
3. The Standing Test: We turn off the pump and wait 15-20 minutes. If the micron level stays steady, we know the system is perfectly sealed. Moisture is the enemy of an AC system; even a tiny drop can turn into acid when mixed with refrigerant oil, eventually killing the compressor. This is a vital part of Ductless Ac Repair Winter Haven Fl prevention.

Releasing the refrigerant charge

Most high-quality mini-splits come "pre-charged" from the factory. This means the outdoor unit is already holding enough R410A refrigerant for a standard line set length (usually up to 25 feet).

Once the vacuum test is passed, we use an Allen wrench to slowly open the service valves. You’ll hear a "hiss" as the refrigerant rushes into the lines. We then perform one final leak check at the flare nuts using a specialized electronic leak detector or bubble solution. After that, we seal the wall hole with high-grade outdoor sealant and install a decorative "line hide" cover to protect the pipes from UV rays and local critters. This ensures your Ductless Ac Service stays minimal for years to come.

Final Testing and Long-Term Maintenance

With the refrigerant flowing, it’s time for the "big reveal." We power the system on and listen. You should hear... almost nothing. That’s the beauty of a ductless system. We check the temperature of the air coming out of the handler to ensure it’s hitting that "sweet spot" (usually a 15-20 degree difference from the room's air).

We’ll also sync your remote control or set up your Wi-Fi app so you can control your comfort from your phone. Finally, we’ll show you how to pop open the front panel to clean the filters. In Polk County, we recommend rinsing these filters once a month to keep the air fresh and the system running efficiently. Regular Ductless Hvac Maintenance is the secret to a system that lasts 20 years instead of 10.

Frequently Asked Questions about Ductless Installation

How long does it actually take?For a standard single-zone installation, a skilled team can have the unit up and running in about 5 hours. Even a 66-year-old DIYer with the right tools can often finish in a day, but the refrigerant handling and electrical work are where most people run into trouble.

Can I do this myself?While there are "DIY kits" available, they often come with risks. In many parts of Florida, you need a permit for electrical and mechanical work. Furthermore, handling refrigerant requires EPA certification. If a flare nut isn't torqued correctly and you lose your refrigerant charge, the cost of a professional "re-charge" can be more than the initial installation savings. Plus, many manufacturers will void your warranty if the system wasn't installed by a licensed pro.

Is it really better for humid climates?Absolutely. Because ductless systems use inverter technology, they can run at very low speeds for long periods. This constant, gentle airflow is much better at pulling humidity out of the air than a traditional system that kicks on and off at full blast. This is why many wonder Is Ductless Better Than Central Air In Humid Climates—and for most Polk County homes, the answer is a resounding yes.

Conclusion

Understanding how a ductless ac installation works step by step helps you appreciate the engineering that goes into these "Climate Commanders." At Integrity Refrigeration & AC, we take pride in every flare nut we tighten and every vacuum we pull. As a family-owned business based right here in Winter Haven since 2008, we know exactly what it takes to keep a home comfortable in the Florida heat.
